VFS60A-BHPZ0-S01 (1036255) Sick Programmable Encoder
| Output Circuit |
RS422 (TTL) |
|---|---|
| Body Diameter |
60mm |
| Shaft Size |
15mm |
| Shaft Type |
Hollow Shaft |
| Technology |
Incremental Encoder |
The VFS60A-BHPZ0-S01 is a high-performance 1036255 SICK encoder engineered as a SICK programmable incremental encoder and reliable motor feedback system encoder for industrial motion control. This SICK VFS60A encoder / VFS60A incremental rotary encoder features a robust 15mm hollow shaft encoder design with RS-422 incremental encoder and TTL incremental encoder interfaces, making it a versatile programmable incremental rotary encoder for demanding applications. Ideal as a CNC motor feedback encoder, servo motor encoder SICK, and high speed incremental encoder, it delivers precise feedback for drive system encoder needs in factory automation encoder environments. As a durable industrial incremental encoder and SICK hollow shaft encoder, it is widely used across automation and motion systems, including SICK encoder Japan supply chains. Available from EncoderMarket, your trusted source for EncoderMarket SICK encoder solutions.
SICK VFS60A-BHPZ0-S01 (1036255) – Programmable Incremental Rotary Encoder / Motor Feedback System
The SICK VFS60A-BHPZ0-S01, part number 1036255, is a high-performance programmable incremental rotary encoder designed as a motor feedback system for demanding industrial motion-control applications. Engineered according to DIN 32878, this encoder combines high precision, mechanical robustness, and flexible electrical configuration, making it ideal for servo motors, drives, and automation systems.
With its blind hollow shaft design (15 mm) and programmable parameters, the VFS60A-BHPZ0-S01 offers reliable speed and position feedback while allowing easy adaptation to different drive requirements.
Key Technical Specifications
According to the SICK technical documentation (pages 1–2):
-
Manufacturer: SICK
-
Model: VFS60A-BHPZ0-S01
-
Part Number: 1036255
-
Encoder Type: Incremental Rotary Encoder / Motor Feedback System
-
Hollow Shaft Diameter: 15 mm (blind hollow shaft)
-
Electrical Interface: TTL / RS-422, 6-channel
-
Number of Lines per Revolution: 1,024 (programmable up to 65,536 lines)
-
Connection: 8-core universal cable, 0.5 m
-
Maximum Output Frequency: 820 kHz
-
Maximum Operating Speed: 6,000 rpm
-
Protection Class: IP65
-
Working Temperature Range: −20 … +100 °C
-
Weight: Approx. 0.2 kg

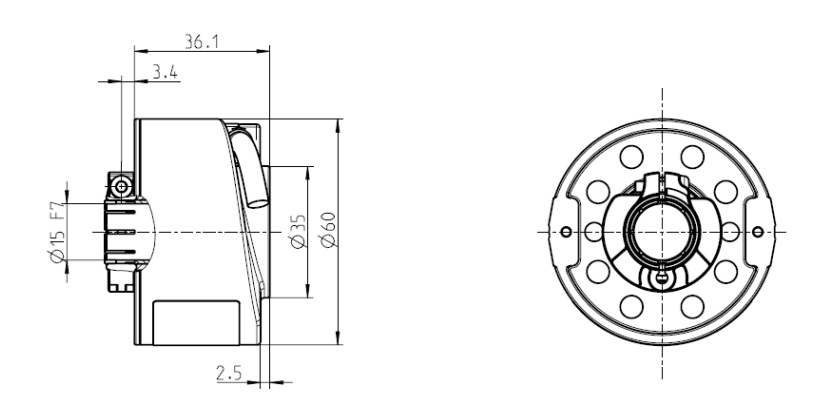

DIMENSIONAL DRAWING
Performance and Design Advantages
-
Programmable Configuration: Both the number of lines and the electrical interface can be programmed ex works, allowing precise adaptation to different motor and drive systems.
-
High Signal Accuracy: With an error limit of ±0.03° and measuring step deviation of ±0.01°, the encoder ensures precise feedback for closed-loop control.
-
Robust Mechanical Design: Designed for industrial environments, the encoder offers high resistance to shock (60 g / 6 ms) and vibration (20 g, 10–2000 Hz).
-
Motor Feedback Optimization: The encoder includes one reference signal positioned at 90° electrical, logically interlocked with channels A and B for reliable referencing.
-
Compact and Durable: The 60 mm housing and blind hollow shaft design provide space-saving installation while maintaining long bearing life (up to 3 × 10⁹ revolutions).
Typical Applications
-
Servo motor feedback systems
-
Industrial drives and inverters
-
CNC machines and machine tools
-
Packaging and automation lines
-
Robotics and precision motion systems
-
Factory automation requiring high-speed incremental feedback
Why Choose the SICK VFS60A-BHPZ0-S01?
The SICK VFS60A-BHPZ0-S01 stands out as a reliable and flexible solution for motor feedback and motion-control applications. Its programmable incremental design, TTL/RS-422 interface, and high mechanical durability make it suitable for both OEM installations and retrofit projects. Backed by SICK’s proven engineering quality, this encoder delivers consistent performance even in harsh industrial environments.
Available through EncoderMarket, the VFS60A-BHPZ0-S01 can be supplied with technical support and global delivery.
📧 Contact: info@encodermarket.com
🌐 Website: www.encodermarket.com
EncoderMarket – Your trusted source for SICK encoders and industrial motion-control solutions.
