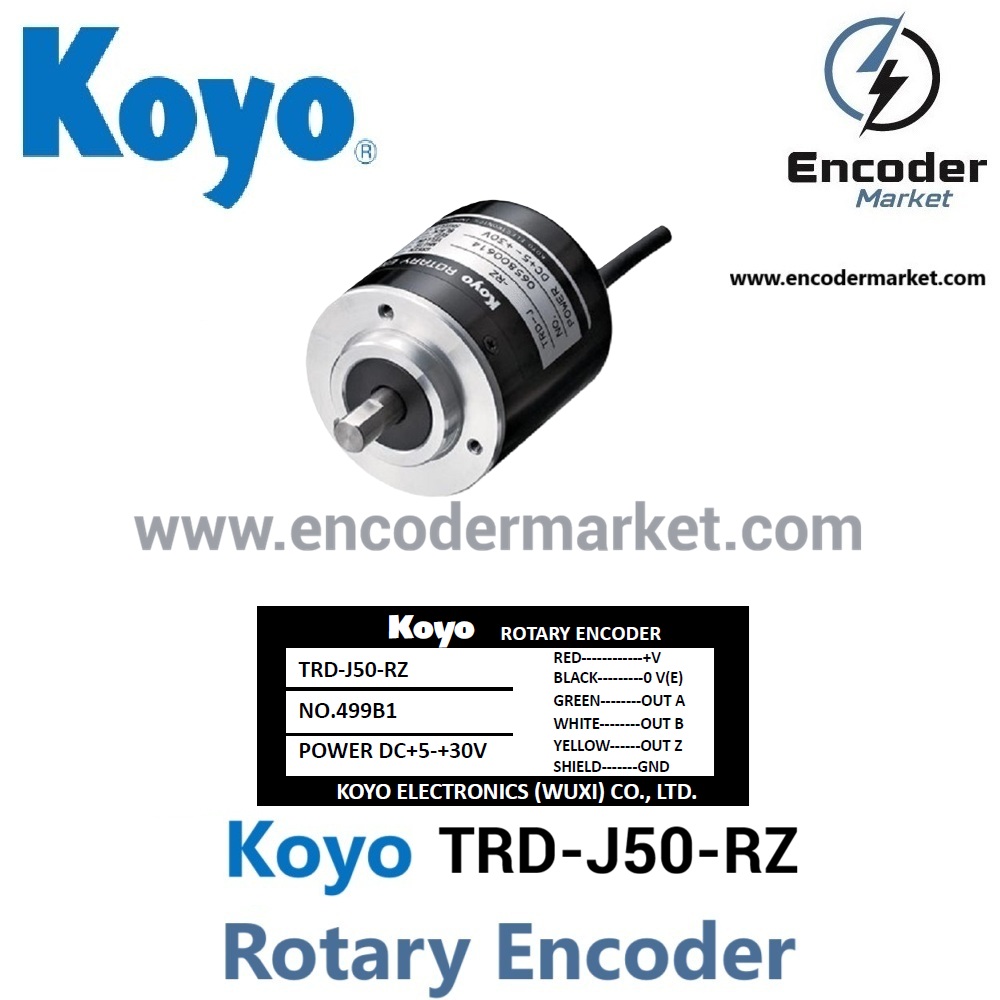

TRD-J50-RZ Koyo Rotary Encoder 50 PPR Push-Pull (Totem Pole) - Image 1

TRD-J50-RZ Koyo Rotary Encoder 50 PPR Push-Pull (Totem Pole)

Body Diameter	50mm
Output Circuit	Push-Pull (Totem Pole) [HTL]
Resolution	50 PPR
Shaft Size	8mm
Shaft Type	Solid Shaft
Technology	Incremental Encoder

Koyo TRD-J50-RZ Rotary Encoder 50 PPR Push-Pull 8mm Solid Shaft 50mm Body

Discover the Koyo TRD-J50-RZ rotary encoder with 50 PPR resolution, 8mm solid shaft, Push-Pull (Totem Pole) output, and 50mm body diameter. Reliable medium duty incremental encoder for industrial automation systems.

Ideal for precision motion control. Shop now at Encoder Market!

Contact info@encodermarket.com for the best pricing and fast delivery.

Brand: Koyo
Model: TRD-J50-RZ
Product Category: Rotary Encoders
Product Sub-Category: Incremental Encoder
Encoder Type: Medium Duty Incremental Encoders
Shaft Type: Solid Shaft
Shaft Size: 8mm
Output Circuit: Push-Pull (Totem Pole) HTL

Datasheet TRD_J Series Koyo Encoder Download pdf

Koyo TRD-J50-RZ Rotary Encoder for Industrial Motion Control Systems

The Koyo Electronics TRD-J50-RZ Rotary Encoder is a reliable medium-duty incremental encoder designed for industrial automation, machinery positioning, conveyor systems, and motion feedback applications. Featuring a durable 50mm body diameter and an 8mm solid shaft structure, this encoder provides stable rotational feedback performance even in demanding industrial environments.

With its 50 PPR resolution and Push-Pull (Totem Pole) output circuit, the Koyo TRD-J50-RZ delivers accurate pulse signals suitable for PLC systems, motor controllers, and industrial automation equipment. Its robust construction and compact mechanical design make it a preferred solution for OEM machine manufacturers and maintenance engineers.

Available models are listed below;

Product Category

Brand

Model

Product Short Name

Product Short Specification

Product Meta Description

Shaft Size

Shaft Type

Output Circuit

Resolution

Outer Diameter


MEDIUM DUTY INCREMENTAL ENCODERS	KOYO	TRD-J50-RZ	Koyo TRD-J50-RZ Rotary Encoder	8mm Solid Shaft Push-Pull (Totem Pole)	Koyo (Japan) Encoder, Incremental, Medium Duty, 50 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP50 (Dust Proof), 0.5 meter Cable, Tinned Ends, Mounting Screws included	8mm	Solid Shaft	Push-Pull (Totem Pole) [HTL]	50 PPR	50mm
MEDIUM DUTY INCREMENTAL ENCODERS	KOYO	TRD-J50-RZC	Koyo TRD-J50-RZC Rotary Encoder	8mm Solid Shaft Push-Pull (Totem Pole)	Koyo (Japan) Encoder, Incremental, Medium Duty, 50 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP50 (Dust Proof), Standard Connector, Mounting Screws included	8mm	Solid Shaft	Push-Pull (Totem Pole) [HTL]	50 PPR	50mm
MEDIUM DUTY INCREMENTAL ENCODERS	KOYO	TRD-J50-RZCL	Koyo TRD-J50-RZCL Rotary Encoder	8mm Solid Shaft Push-Pull (Totem Pole)	Koyo (Japan) Encoder, Incremental, Medium Duty, 50 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP50 (Dust Proof), Standard Connector, Mounting Screws included	8mm	Solid Shaft	Push-Pull (Totem Pole) [HTL]	50 PPR	50mm
MEDIUM DUTY INCREMENTAL ENCODERS	KOYO	TRD-J50-RZCW	Koyo TRD-J50-RZCW Rotary Encoder	8mm Solid Shaft Push-Pull (Totem Pole)	Koyo (Japan) Encoder, Incremental, Medium Duty, 50 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP65 (Waterjet Proof), Standard Connector, Mounting Screws included	8mm	Solid Shaft	Push-Pull (Totem Pole) [HTL]	50 PPR	50mm
MEDIUM DUTY INCREMENTAL ENCODERS	KOYO	TRD-J50-RZCWL	Koyo TRD-J50-RZCWL Rotary Encoder	8mm Solid Shaft Push-Pull (Totem Pole)	Koyo (Japan) Encoder, Incremental, Medium Duty, 50 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP65 (Waterjet Proof), Standard Connector, Mounting Screws included	8mm	Solid Shaft	Push-Pull (Totem Pole) [HTL]	50 PPR	50mm
MEDIUM DUTY INCREMENTAL ENCODERS	KOYO	TRD-J50-RZL	Koyo TRD-J50-RZL Rotary Encoder	8mm Solid Shaft Push-Pull (Totem Pole)	Koyo (Japan) Encoder, Incremental, Medium Duty, 50 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP50 (Dust Proof), 0.5 meter Cable, Tinned Ends, Mounting Screws included	8mm	Solid Shaft	Push-Pull (Totem Pole) [HTL]	50 PPR	50mm
MEDIUM DUTY INCREMENTAL ENCODERS	KOYO	TRD-J50-RZS	Koyo TRD-J50-RZS Rotary Encoder	8mm Solid Shaft Push-Pull (Totem Pole)	Koyo (Japan) Encoder, Incremental, Medium Duty, 50 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP50 (Dust Proof), 0.5 meter Cable, Tinned Ends, Mounting Screws included	8mm	Solid Shaft	Push-Pull (Totem Pole) [HTL]	50 PPR	50mm
MEDIUM DUTY INCREMENTAL ENCODERS	KOYO	TRD-J50-RZSL	Koyo TRD-J50-RZSL Rotary Encoder	8mm Solid Shaft Push-Pull (Totem Pole)	Koyo (Japan) Encoder, Incremental, Medium Duty, 50 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP50 (Dust Proof), 0.5 meter Cable, Tinned Ends, Mounting Screws included	8mm	Solid Shaft	Push-Pull (Totem Pole) [HTL]	50 PPR	50mm
MEDIUM DUTY INCREMENTAL ENCODERS	KOYO	TRD-J50-RZW	Koyo TRD-J50-RZW Rotary Encoder	8mm Solid Shaft Push-Pull (Totem Pole)	Koyo (Japan) Encoder, Incremental, Medium Duty, 50 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP65 (Waterjet Proof), 0.5 meter Cable, Tinned Ends, Mounting Screws included	8mm	Solid Shaft	Push-Pull (Totem Pole) [HTL]	50 PPR	50mm
MEDIUM DUTY INCREMENTAL ENCODERS	KOYO	TRD-J50-RZWL	Koyo TRD-J50-RZWL Rotary Encoder	8mm Solid Shaft Push-Pull (Totem Pole)	Koyo (Japan) Encoder, Incremental, Medium Duty, 50 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP65 (Waterjet Proof), 0.5 meter Cable, Tinned Ends, Mounting Screws included	8mm	Solid Shaft	Push-Pull (Totem Pole) [HTL]	50 PPR	50mm
MEDIUM DUTY INCREMENTAL ENCODERS	KOYO	TRD-J50-RZWS	Koyo TRD-J50-RZWS Rotary Encoder	8mm Solid Shaft Push-Pull (Totem Pole)	Koyo (Japan) Encoder, Incremental, Medium Duty, 50 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP65 (Waterjet Proof), 0.5 meter Cable, Tinned Ends, Mounting Screws included	8mm	Solid Shaft	Push-Pull (Totem Pole) [HTL]	50 PPR	50mm
MEDIUM DUTY INCREMENTAL ENCODERS	KOYO	TRD-J50-RZWSL	Koyo TRD-J50-RZWSL Rotary Encoder	8mm Solid Shaft Push-Pull (Totem Pole)	Koyo (Japan) Encoder, Incremental, Medium Duty, 50 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP65 (Waterjet Proof), 0.5 meter Cable, Tinned Ends, Mounting Screws included	8mm	Solid Shaft	Push-Pull (Totem Pole) [HTL]	50 PPR	50mm

Reliable 50 PPR Incremental Signal Output

The encoder generates 50 pulses per revolution, enabling precise rotational speed and position monitoring. This resolution level is ideal for medium-duty industrial applications requiring stable and repeatable motion feedback without unnecessary complexity.

The Push-Pull (Totem Pole) output configuration offers flexible compatibility with many industrial control systems and improves signal integrity over longer cable distances.

Compact and Durable Mechanical Design

The Koyo TRD-J50-RZ features:

8mm solid shaft
50mm outer body diameter
Medium-duty industrial housing
Dust-resistant structure
Tinned cable ends
Mounting screws included
0.5 meter cable length

Its durable body design helps ensure long operational life in industrial environments where vibration, dust, and continuous operation are common.

Industrial Applications

The Koyo TRD-J50-RZ Rotary Encoder is commonly used in:

Conveyor systems
Packaging machinery
Textile machines
Printing machines
Motor feedback systems
Position control systems
Industrial automation equipment
Speed monitoring applications

Technical Specifications

Feature	Specification
Brand	Koyo
Model	TRD-J50-RZ
Encoder Type	Incremental Rotary Encoder
Resolution	50 PPR
Shaft Diameter	8mm
Shaft Type	Solid Shaft
Output Circuit	Push-Pull (Totem Pole)
Outer Diameter	50mm
Supply Voltage	5-30VDC
Cable Length	0.5 Meter
Protection	Dust Proof
Duty Type	Medium Duty

Why Choose the Koyo TRD-J50-RZ Encoder?

The Koyo TRD-J50-RZ offers an excellent balance between durability, compact size, and reliable signal performance. It is particularly suitable for industrial automation systems where dependable rotary feedback is critical for machine efficiency and process stability.

Its industrial-grade construction, easy installation, and broad voltage compatibility make it a practical choice for both new machine production and replacement applications.

FAQ

What is the resolution of the Koyo TRD-J50-RZ encoder?

The encoder provides 50 pulses per revolution (50 PPR) incremental output.

What type of output does this encoder use?

The TRD-J50-RZ uses a Push-Pull (Totem Pole) output circuit.

What is the shaft size of the encoder?

It features an 8mm solid shaft.

What voltage range does the encoder support?

The encoder operates within a 5-30VDC supply voltage range.

Is the Koyo TRD-J50-RZ suitable for industrial environments?

Yes. The encoder is designed as a medium-duty industrial encoder with a dust-proof structure for reliable operation.

What applications commonly use this encoder?

It is widely used in conveyor systems, packaging machines, textile machinery, industrial automation systems, and motor feedback applications.
