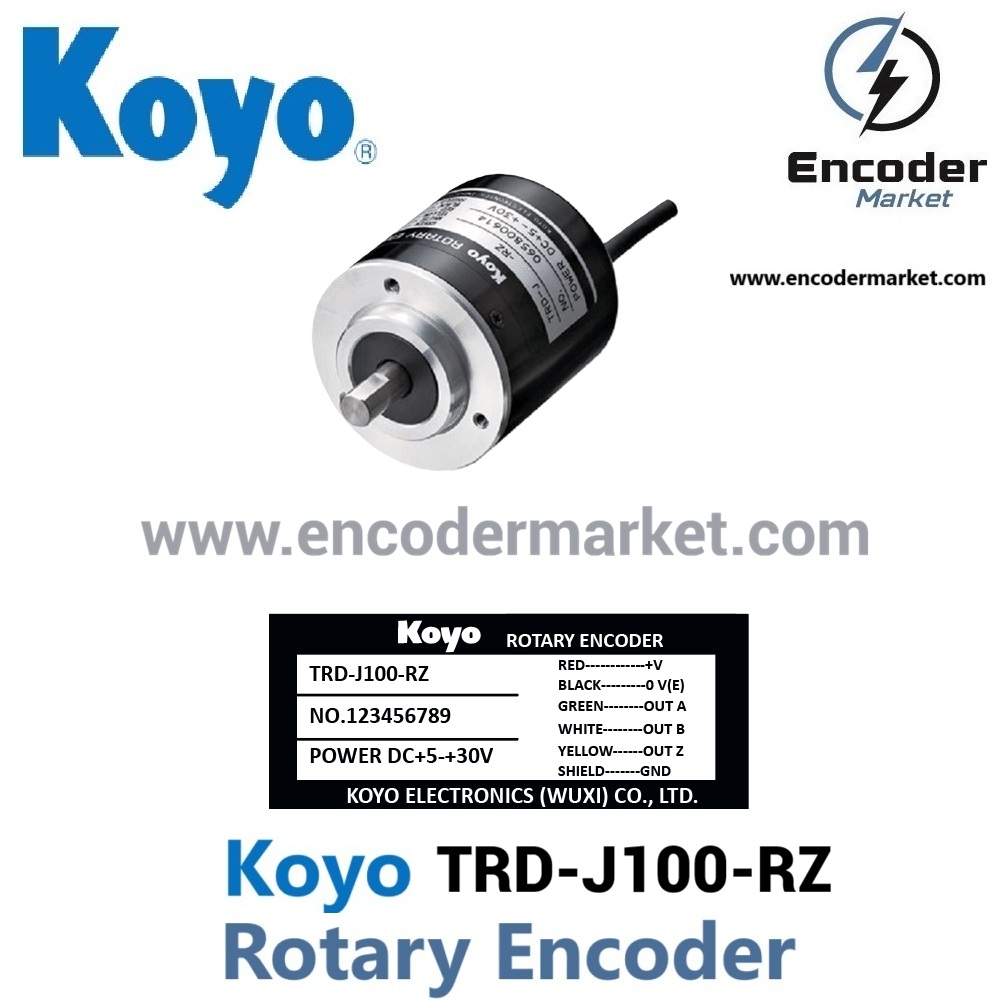

TRD-J100-RZ Koyo Incremental Rotary Encoder 100 PPR
| Body Diameter |
50mm |
|---|---|
| Output Circuit |
Push-Pull (Totem Pole) [HTL] |
| Resolution |
100 PPR |
| Shaft Size |
8mm |
| Shaft Type |
Solid Shaft |
| Technology |
Incremental Encoder |
Koyo TRD-J100-RZ Rotary Encoder 100 PPR Push-Pull (Totem Pole) [HTL] 8mm Solid Shaft 50mm Body Diameter
Explore the Koyo TRD-J100-RZ rotary encoder featuring 100 PPR resolution, Push-Pull (HTL) output, 8mm solid shaft, and 50mm body diameter. Reliable incremental encoder for industrial automation and motion control systems.
Ideal for precision motion control. Shop now at Encoder Market!
Contact info@encodermarket.com for the best pricing and fast delivery.
Brand: Koyo
Model: TRD-J100-RZ
Product Category: Rotary Encoders
Product Sub-Category: Incremental Encoder
Encoder Type: Medium Duty Incremental Encoders
Shaft Type: Solid Shaft
Shaft Size: 8mm
Output Circuit: Push-Pull (Totem Pole) HTL
Datasheet TRD_J Series Koyo Encoder Download pdf
Koyo TRD-J100-RZ Rotary Encoder for Industrial Automation Applications
The Koyo Electronics TRD-J100-RZ Rotary Encoder is a compact and reliable incremental encoder designed for industrial automation systems requiring stable motion feedback and accurate rotational monitoring. With its 100 PPR resolution, Push-Pull (HTL) output circuit, and robust 50mm body construction, this encoder is suitable for medium-duty industrial environments.
Designed with an 8mm solid shaft and durable mechanical housing, the Koyo TRD-J100-RZ provides dependable operation in machinery, conveyors, textile systems, packaging lines, and motor control applications.
Available models are listed below;
| Product Category | Brand | Model | Product Short Name | Product Short Specification | Product Meta Description | Shaft Size | Shaft Type | Output Circuit | Resolution | Outer Diameter |
| MEDIUM DUTY INCREMENTAL ENCODERS | KOYO | TRD-J100-RZ | Koyo TRD-J100-RZ Rotary Encoder | 8mm Solid Shaft Push-Pull (Totem Pole) | Koyo (Japan) Encoder, Incremental, Medium Duty, 100 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP50 (Dust Proof), 0.5 meter Cable, Tinned Ends, Mounting Screws included | 8mm | Solid Shaft | Push-Pull (Totem Pole) [HTL] | 100 PPR | 50mm |
| MEDIUM DUTY INCREMENTAL ENCODERS | KOYO | TRD-J100-RZ-1M | Koyo TRD-J100-RZ-1M Rotary Encoder | 8mm Solid Shaft Push-Pull (Totem Pole) | Koyo (Japan) Encoder, Incremental, Medium Duty, 100 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP50 (Dust Proof), 1 meter Cable, Tinned Ends, Mounting Screws included | 8mm | Solid Shaft | Push-Pull (Totem Pole) [HTL] | 100 PPR | 50mm |
| MEDIUM DUTY INCREMENTAL ENCODERS | KOYO | TRD-J100-RZ-2M | Koyo TRD-J100-RZ-2M Rotary Encoder | 8mm Solid Shaft Push-Pull (Totem Pole) | Koyo (Japan) Encoder, Incremental, Medium Duty, 100 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP50 (Dust Proof), 2 meter Cable, Tinned Ends, Mounting Screws included | 8mm | Solid Shaft | Push-Pull (Totem Pole) [HTL] | 100 PPR | 50mm |
| MEDIUM DUTY INCREMENTAL ENCODERS | KOYO | TRD-J100-RZ-3M | Koyo TRD-J100-RZ-3M Rotary Encoder | 8mm Solid Shaft Push-Pull (Totem Pole) | Koyo (Japan) Encoder, Incremental, Medium Duty, 100 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP50 (Dust Proof), 3 meter Cable, Tinned Ends, Mounting Screws included | 8mm | Solid Shaft | Push-Pull (Totem Pole) [HTL] | 100 PPR | 50mm |
| MEDIUM DUTY INCREMENTAL ENCODERS | KOYO | TRD-J100-RZC | Koyo TRD-J100-RZC Rotary Encoder | 8mm Solid Shaft Push-Pull (Totem Pole) | Koyo (Japan) Encoder, Incremental, Medium Duty, 100 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP50 (Dust Proof), Standard Connector, Mounting Screws included | 8mm | Solid Shaft | Push-Pull (Totem Pole) [HTL] | 100 PPR | 50mm |
| MEDIUM DUTY INCREMENTAL ENCODERS | KOYO | TRD-J100-RZCL | Koyo TRD-J100-RZCL Rotary Encoder | 8mm Solid Shaft Push-Pull (Totem Pole) | Koyo (Japan) Encoder, Incremental, Medium Duty, 100 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP50 (Dust Proof), Standard Connector, Mounting Screws included | 8mm | Solid Shaft | Push-Pull (Totem Pole) [HTL] | 100 PPR | 50mm |
| MEDIUM DUTY INCREMENTAL ENCODERS | KOYO | TRD-J100-RZCW | Koyo TRD-J100-RZCW Rotary Encoder | 8mm Solid Shaft Push-Pull (Totem Pole) | Koyo (Japan) Encoder, Incremental, Medium Duty, 100 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP65 (Waterjet Proof), Standard Connector, Mounting Screws included | 8mm | Solid Shaft | Push-Pull (Totem Pole) [HTL] | 100 PPR | 50mm |
| MEDIUM DUTY INCREMENTAL ENCODERS | KOYO | TRD-J100-RZCWL | Koyo TRD-J100-RZCWL Rotary Encoder | 8mm Solid Shaft Push-Pull (Totem Pole) | Koyo (Japan) Encoder, Incremental, Medium Duty, 100 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP65 (Waterjet Proof), Standard Connector, Mounting Screws included | 8mm | Solid Shaft | Push-Pull (Totem Pole) [HTL] | 100 PPR | 50mm |
| MEDIUM DUTY INCREMENTAL ENCODERS | KOYO | TRD-J100-RZL | Koyo TRD-J100-RZL Rotary Encoder | 8mm Solid Shaft Push-Pull (Totem Pole) | Koyo (Japan) Encoder, Incremental, Medium Duty, 100 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP50 (Dust Proof), 0.5 meter Cable, Tinned Ends, Mounting Screws included | 8mm | Solid Shaft | Push-Pull (Totem Pole) [HTL] | 100 PPR | 50mm |
| MEDIUM DUTY INCREMENTAL ENCODERS | KOYO | TRD-J100-RZS | Koyo TRD-J100-RZS Rotary Encoder | 8mm Solid Shaft Push-Pull (Totem Pole) | Koyo (Japan) Encoder, Incremental, Medium Duty, 100 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP50 (Dust Proof), 0.5 meter Cable, Tinned Ends, Mounting Screws included | 8mm | Solid Shaft | Push-Pull (Totem Pole) [HTL] | 100 PPR | 50mm |
| MEDIUM DUTY INCREMENTAL ENCODERS | KOYO | TRD-J100-RZSL | Koyo TRD-J100-RZSL Rotary Encoder | 8mm Solid Shaft Push-Pull (Totem Pole) | Koyo (Japan) Encoder, Incremental, Medium Duty, 100 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP50 (Dust Proof), 0.5 meter Cable, Tinned Ends, Mounting Screws included | 8mm | Solid Shaft | Push-Pull (Totem Pole) [HTL] | 100 PPR | 50mm |
| MEDIUM DUTY INCREMENTAL ENCODERS | KOYO | TRD-J100-RZW | Koyo TRD-J100-RZW Rotary Encoder | 8mm Solid Shaft Push-Pull (Totem Pole) | Koyo (Japan) Encoder, Incremental, Medium Duty, 100 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP65 (Waterjet Proof), 0.5 meter Cable, Tinned Ends, Mounting Screws included | 8mm | Solid Shaft | Push-Pull (Totem Pole) [HTL] | 100 PPR | 50mm |
| MEDIUM DUTY INCREMENTAL ENCODERS | KOYO | TRD-J100-RZWL | Koyo TRD-J100-RZWL Rotary Encoder | 8mm Solid Shaft Push-Pull (Totem Pole) | Koyo (Japan) Encoder, Incremental, Medium Duty, 100 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP65 (Waterjet Proof), 0.5 meter Cable, Tinned Ends, Mounting Screws included | 8mm | Solid Shaft | Push-Pull (Totem Pole) [HTL] | 100 PPR | 50mm |
| MEDIUM DUTY INCREMENTAL ENCODERS | KOYO | TRD-J100-RZWS | Koyo TRD-J100-RZWS Rotary Encoder | 8mm Solid Shaft Push-Pull (Totem Pole) | Koyo (Japan) Encoder, Incremental, Medium Duty, 100 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP65 (Waterjet Proof), 0.5 meter Cable, Tinned Ends, Mounting Screws included | 8mm | Solid Shaft | Push-Pull (Totem Pole) [HTL] | 100 PPR | 50mm |
| MEDIUM DUTY INCREMENTAL ENCODERS | KOYO | TRD-J100-RZWSL | Koyo TRD-J100-RZWSL Rotary Encoder | 8mm Solid Shaft Push-Pull (Totem Pole) | Koyo (Japan) Encoder, Incremental, Medium Duty, 100 Pulses per Revolution, 8mm Solid Shaft, 50mm Diameter Body, 5-30VDC, Push-Pull (Totem Pole), IP65 (Waterjet Proof), 0.5 meter Cable, Tinned Ends, Mounting Screws included | 8mm | Solid Shaft | Push-Pull (Totem Pole) [HTL] | 100 PPR | 50mm |
Accurate 100 PPR Incremental Feedback
The encoder generates 100 pulses per revolution, offering improved motion control precision for industrial automation processes. This resolution level is ideal for applications requiring stable speed feedback, rotational direction monitoring, and reliable positioning signals.
Its Push-Pull (Totem Pole) HTL output ensures strong signal transmission and compatibility with many PLCs, motor drivers, and industrial controllers.
Durable Mechanical Structure
The Koyo TRD-J100-RZ features a medium-duty industrial design with:
- 8mm solid shaft
- 50mm outer diameter
- Push-Pull (HTL) output
- Dust-proof construction
- 0.5 meter cable
- Tinned cable ends
- Mounting screws included
Its compact structure allows easy integration into industrial machines while maintaining long-term operational reliability.
Applications of the Koyo TRD-J100-RZ Encoder
This encoder is widely used in:
- Industrial automation systems
- Conveyor equipment
- Packaging machinery
- Textile machinery
- Speed control systems
- Motor feedback applications
- Position monitoring systems
- Printing machines
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Koyo |
| Model | TRD-J100-RZ |
| Encoder Type | Incremental Rotary Encoder |
| Resolution | 100 PPR |
| Shaft Diameter | 8mm |
| Shaft Type | Solid Shaft |
| Output Circuit | Push-Pull (Totem Pole) HTL |
| Outer Diameter | 50mm |
| Supply Voltage | 5-30VDC |
| Cable Length | 0.5 Meter |
| Protection | Dust Proof |
| Duty Type | Medium Duty |
FAQ
What is the resolution of the Koyo TRD-J100-RZ encoder?
The encoder provides 100 pulses per revolution (100 PPR).
What type of output signal does this encoder use?
The TRD-J100-RZ uses a Push-Pull (Totem Pole) HTL output circuit.
What is the shaft diameter of the encoder?
The encoder features an 8mm solid shaft.
Is the Koyo TRD-J100-RZ suitable for industrial environments?
Yes. Its medium-duty dust-proof construction makes it suitable for industrial automation systems.
Which applications commonly use this encoder?
It is commonly used in conveyors, packaging machines, textile systems, motor control systems, and industrial automation equipment.
What voltage range does the encoder support?
The encoder operates with a supply voltage range of 5-30VDC.
