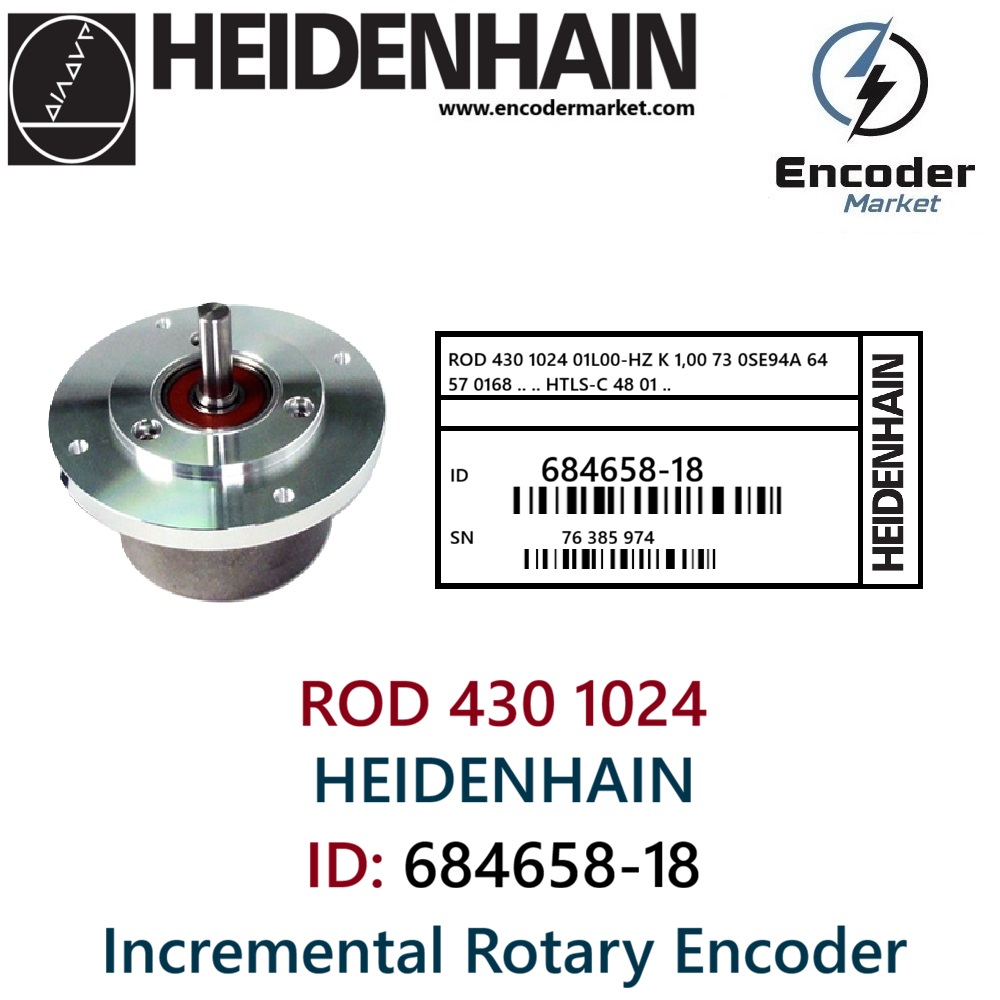

HEIDENHAIN ROD 430 1024 Rotary Encoder (ID 684658-18)

The HEIDENHAIN ROD 430 1024 rotary encoder (ID 684658-18) is a high-precision incremental rotary encoder designed for industrial motion control systems, CNC machines, and servo motor applications. Developed by HEIDENHAIN, a globally recognized manufacturer of precision measurement technology, this encoder provides reliable feedback signals for monitoring rotational position, speed, and direction in automation systems.

Rotary encoders are essential components in modern industrial machinery. They convert mechanical shaft rotation into electrical signals that can be interpreted by control systems. The ROD 430 1024 encoder generates precise incremental signals that allow CNC controllers and servo drives to maintain accurate motion control. Because of its durability and measurement accuracy, this encoder is widely used in machine tools, robotics, packaging machines, printing equipment, and other automated manufacturing systems.

High-Precision Incremental Encoder Technology

The ROD 430 series belongs to the HEIDENHAIN family of incremental rotary encoders with integrated bearings and solid shafts. These encoders use an optical scanning system that detects rotational movement through a precision scale disk. As the shaft rotates, the optical scanning system generates electrical signals corresponding to the encoder resolution.

With 1024 pulses per revolution (PPR), the ROD 430 1024 encoder provides accurate angular feedback for motion control systems. The encoder produces incremental A and B quadrature signals, which allow controllers to determine both rotational speed and direction. In some configurations, an additional reference signal (Z signal) is available for precise homing and position reference.

Because of this high-resolution signal generation, the encoder is capable of supporting precise servo control and synchronized motion in demanding industrial environments.

Robust Mechanical Design for Industrial Applications

The HEIDENHAIN ROD 430 encoder features a compact and durable mechanical structure designed for long-term industrial operation. The encoder housing includes integrated precision bearings that ensure stable shaft rotation and accurate signal detection.

The encoder typically uses a solid shaft configuration, commonly around 10 mm diameter, which is connected to the machine shaft using a flexible coupling. This coupling compensates for axial movement and misalignment between shafts, protecting the encoder bearings and extending the operational lifespan of the device.

The encoder can be mounted using a synchro flange or clamping flange, depending on the installation requirements of the machine. Its compact form factor allows it to be integrated easily into CNC machines and automation equipment where installation space may be limited.

HEIDENHAIN ROD 430 Encoder Series – Complete Model & ID Table

Typical Industrial Applications

The HEIDENHAIN ROD 430 1024 encoder is widely used in many industrial automation and motion control applications, including:

• CNC machining centers

• Servo motor feedback systems

• Robotics and automated production lines

• Printing and packaging machinery

• Textile machinery

• Woodworking and metalworking equipment

• Precision positioning systems

In these applications, accurate encoder feedback ensures precise positioning, stable machine operation, and improved production efficiency.

Technical Specifications – HEIDENHAIN ROD 430 1024

Reliable Encoder for CNC Machine Maintenance

Rotary encoders are critical components in motion control systems. When an encoder becomes damaged or worn, the machine may lose positional accuracy or fail to operate correctly. Replacing the faulty encoder with the correct model is essential for restoring machine performance.

The HEIDENHAIN ROD 430 1024 rotary encoder (ID 684658-18) is frequently used as a replacement encoder in CNC machines and automation equipment. Its high precision, durable construction, and reliable signal output make it a trusted solution for industrial maintenance and repair operations.

At EncoderMarket, we supply original HEIDENHAIN rotary encoders, including the ROD 430 1024 model, for customers worldwide. Our company specializes in industrial encoders, motion control sensors, and automation spare parts for CNC machines and precision manufacturing systems.

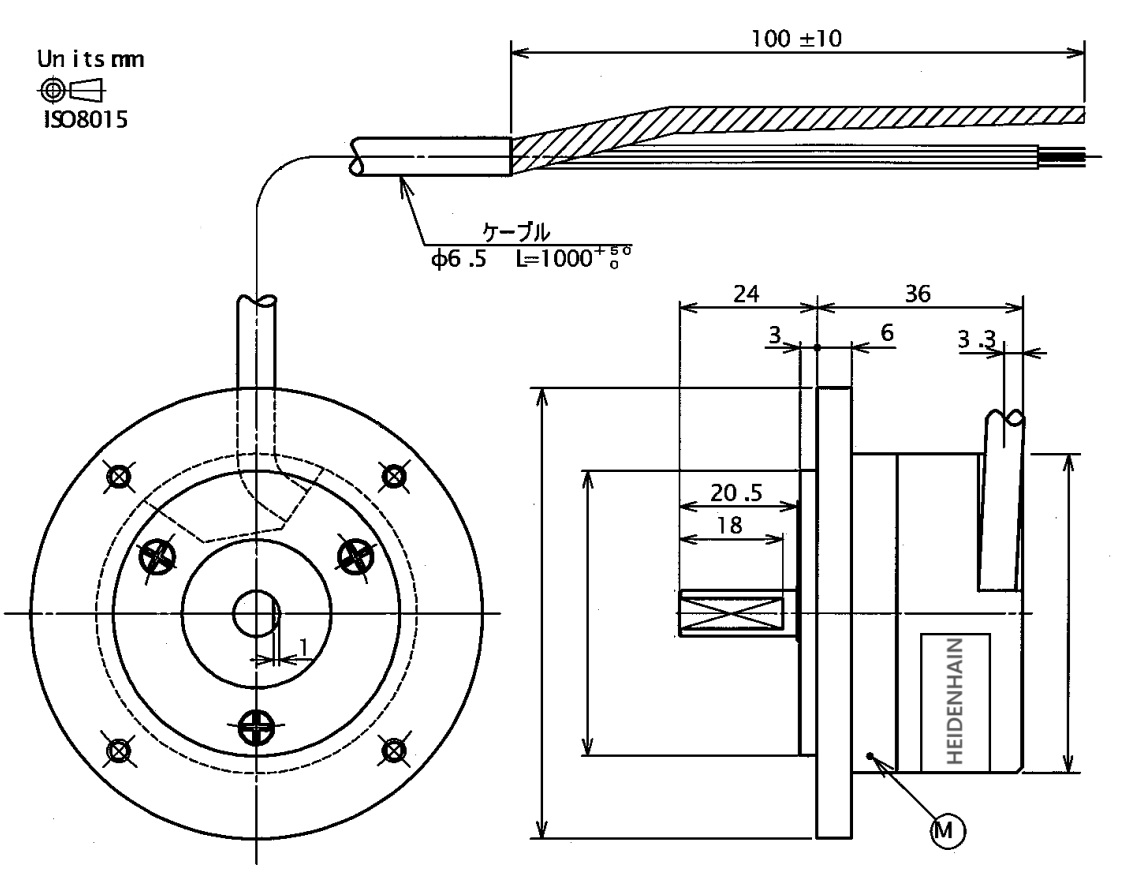

Mechanical Drawing – HEIDENHAIN ROD 430 Rotary Encoder

The mechanical drawing above illustrates the installation dimensions and mounting structure of the HEIDENHAIN ROD 430 rotary encoder. It shows the front and side views of the encoder housing, including shaft dimensions, flange mounting hole positions, and cable outlet details.

Encoders in the ROD 400 series are incremental rotary encoders with integral bearings and solid shafts designed for separate shaft coupling, allowing compensation of axial movement and misalignment between the encoder shaft and the machine shaft.

This design protects the encoder bearings from mechanical stress and helps maintain long service life in industrial environments.

Key Mechanical Characteristics

Typical mechanical features of ROD 430 series encoders include:

• Solid shaft design (commonly around 10 mm diameter)

• Synchro flange or clamping flange mounting options

• Compact housing diameter around 56 mm

• Compatibility with flexible shaft couplings

• Designed for high-speed industrial operation

These encoders can provide incremental signals with line counts ranging from tens to thousands of pulses per revolution, depending on the specific model configuration.

Engineering Installation Notes

When installing a ROD 430 rotary encoder, engineers should consider the following:

• Use a flexible coupling to connect the encoder shaft to the machine shaft.

• Ensure the mounting flange holes align correctly with the machine interface.

• Avoid radial or axial force directly on the encoder shaft.

• Protect the cable outlet to prevent vibration damage.

Proper installation ensures accurate rotational measurement and reliable feedback for motion control systems.

Frequently Asked Questions (FAQ)

What is the HEIDENHAIN ROD 430 1024 encoder used for?
The ROD 430 1024 encoder is used in CNC machines, servo motors, robotics systems, and other industrial automation equipment to provide accurate position and speed feedback.

What does ID 684658-18 refer to?
ID 684658-18 is the HEIDENHAIN identification number used to specify this particular configuration of the ROD 430 1024 encoder.

Is the ROD 430 1024 an incremental encoder?
Yes. The ROD 430 1024 is an incremental rotary encoder that generates electrical pulse signals corresponding to shaft rotation.

What resolution does the ROD 430 1024 encoder provide?
The encoder provides 1024 pulses per revolution, allowing precise rotational position detection in motion control systems.

Where can I buy the HEIDENHAIN ROD 430 1024 encoder?
The HEIDENHAIN ROD 430 1024 rotary encoder (ID 684658-18) can be sourced from industrial suppliers such as EncoderMarket, which offers global shipping and support for automation spare parts.
