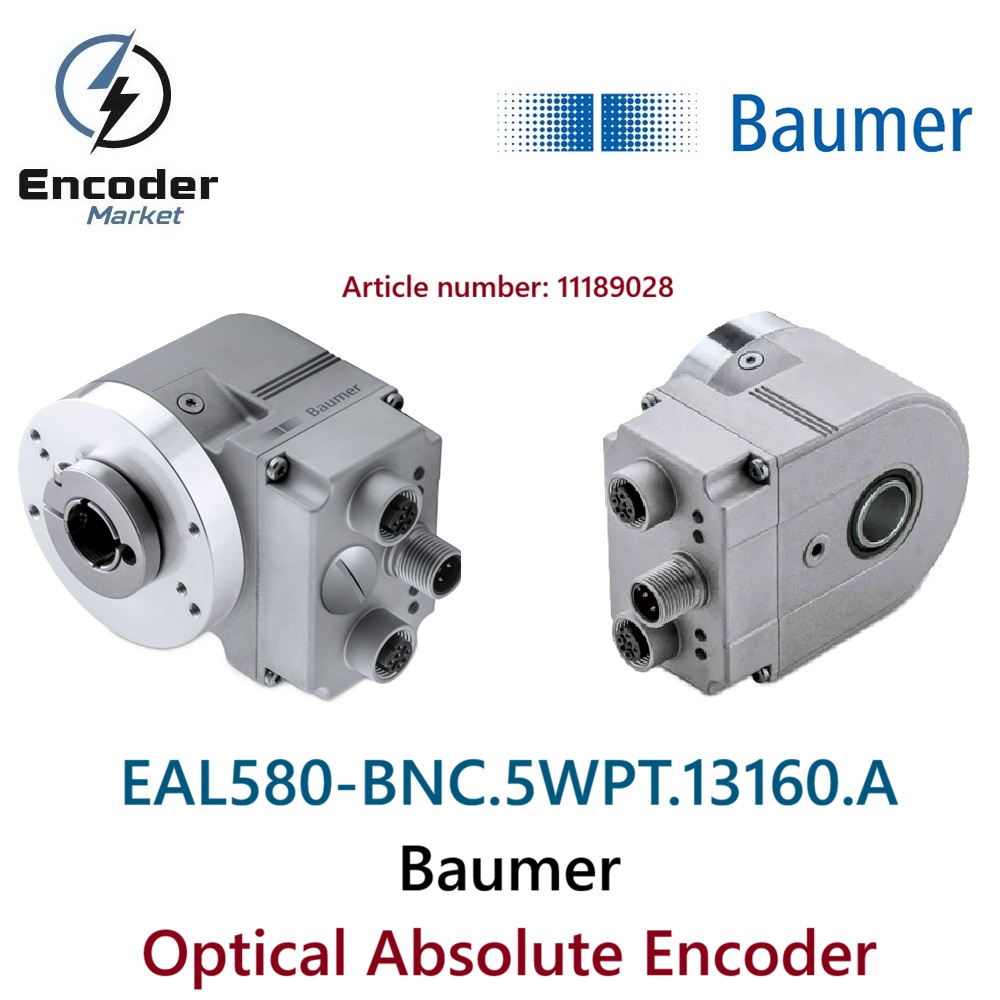

EAL580-BNC.5WPT.13160.A Baumer Optical Absolute Encoder

EAL580-BNC-5WPT-13160-A Baumer Optical Absolute Encoder – High Precision PROFINET Multiturn Encoder

Introduction

The EAL580-BNC-5WPT-13160-A optical absolute encoder by Baumer is a high-precision industrial position feedback device designed for demanding automation environments. Built with advanced optical sensing technology and a robust mechanical structure, this encoder delivers reliable position data, exceptional accuracy, and seamless integration with modern industrial networks such as PROFINET IO.

Thanks to its multiturn absolute measurement capability, the encoder retains the exact position information even after power loss, making it ideal for applications requiring precise motion control and continuous position tracking.

Advanced Optical Absolute Encoder Technology

The Baumer EAL580 series is designed with optical sensing technology, which provides higher resolution and improved signal stability compared to magnetic encoder alternatives. This design ensures highly accurate position feedback and long-term reliability in critical automation systems.

With a 13-bit single-turn resolution and 16-bit multi-turn capability, the encoder achieves a total resolution of 29 bits, enabling extremely precise measurement of rotational position and number of revolutions.

This level of precision makes the EAL580-BNC-5WPT-13160-A particularly suitable for:

• CNC machines

• Robotics and motion control systems

• Packaging machinery

• Industrial automation equipment

• Material handling systems

• Textile and printing machines

PROFINET IO Communication for Modern Industrial Networks

One of the major advantages of this encoder is its PROFINET IO interface, which allows fast and reliable communication with PLC systems and industrial networks. The encoder supports real-time communication classes and high-speed data exchange for precise control applications.

Key communication benefits include:

• Real-time Ethernet communication

• Fast update times for motion control

• Integration with modern automation systems

• Advanced diagnostic capabilities via LED indicators

This makes the encoder an excellent solution for Industry 4.0 environments and smart factory applications.

Robust Mechanical Design for Industrial Environments

The EAL580-BNC-5WPT-13160-A features a durable industrial design built to withstand harsh operating conditions. Its 58 mm housing with a blind hollow shaft allows easy installation in compact machinery while maintaining high mechanical stability.

Key mechanical specifications include:

• Shaft type: 12 mm blind hollow shaft

• Housing diameter: 58 mm

• Maximum operating speed: up to 6000 rpm

• Protection rating: IP65

• Operating temperature: –40 °C to +85 °C

• Housing material: Zinc die-cast with aluminum flange

These features ensure long service life even in high vibration, shock, and industrial environments.

High Accuracy and Reliability

Precision positioning is critical for modern automation systems. The encoder delivers extremely high angular accuracy and stable measurements thanks to its optical scanning technology.

Important performance features include:

• Absolute accuracy up to ±0.025°

• Resistance to electromagnetic interference

• Excellent immunity to magnetic fields

• High vibration and shock resistance

These characteristics make the encoder ideal for high-precision motion control applications.

Key Features of EAL580-BNC-5WPT-13160-A

• Optical multiturn absolute encoder

• 13-bit singleturn + 16-bit multiturn resolution

• 29-bit total resolution

• PROFINET IO industrial communication

• 12 mm blind hollow shaft

• IP65 protection

• Operating speed up to 6000 rpm

• Wide operating temperature range –40°C to +85°C

• Integrated LED status indicators

• UL approved industrial design

Supply of Baumer Encoders via EncoderMarket

At EncoderMarket, we supply original Baumer EAL580-BNC-5WPT-13160-A absolute encoders for industrial automation systems worldwide. Our team supports customers with:

• Competitive pricing

• Global shipping

• Technical consultation

• Replacement and cross-reference solutions

• Industrial automation spare parts sourcing

If you are looking for a reliable supplier for Baumer absolute encoders, please contact us for a quotation or technical assistance.

📧 info@encodermarket.com
🌐 www.encodermarket.com
