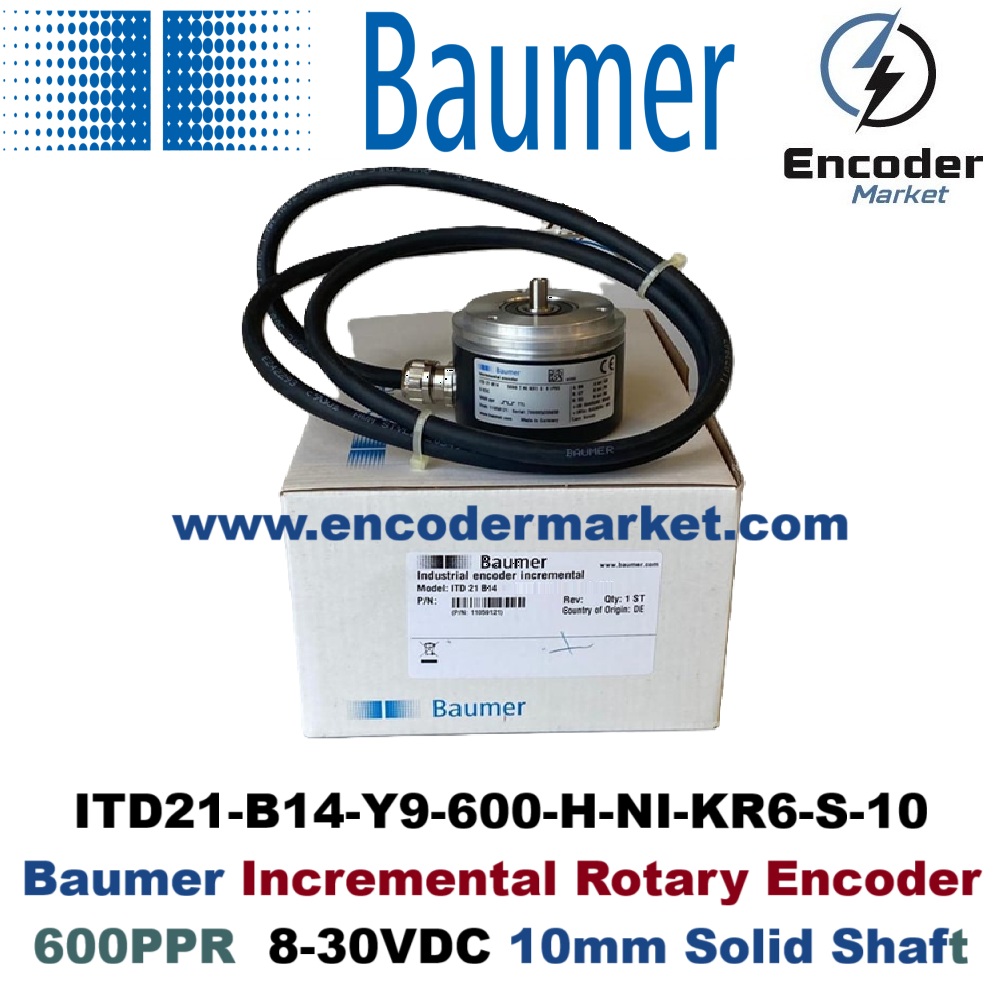

ITD21-B14-Y9-600-H-NI-KR6-S-10 Incremental Encoder 600PPR
| Resolution |
600 PPR |
|---|---|
| Technology |
Incremental Encoder |
| Output Circuit |
Push-Pull (Totem Pole) [HTL] |
| Body Diameter |
58mm |
| Shaft Type |
Solid Shaft |
| Shaft Size |
10mm |
ITD21-B14-Y9-600-H-NI-KR6-S-10 Baumer Incremental Encoder 600PPR
The Baumer ITD21-B14-Y9-600-H-NI-KR6-S-10 is a high-quality Baumer incremental encoder designed for industrial automation, CNC machines, and robotic systems requiring precise motion control. This Baumer rotary encoder features a 600 PPR resolution, HTL push-pull output, and solid 10mm shaft, housed in a durable 58mm aluminum body. Operating on 8–30VDC, it ensures reliable feedback signals through a 1m radial output cable, making it a versatile choice for servo motors, packaging machinery, and robotic systems. The Baumer HTL level encoder is built for stability and noise immunity, offering robust performance even in demanding environments. Trusted for German engineering quality, this industrial motion control encoder combines precision and longevity, ideal for OEMs and integrators. Available from EncoderMarket, a leading Baumer encoder supplier, the Baumer ITD21-B14-Y9-600-H-NI-KR6-S-10 ensures unmatched reliability in automation, incremental rotary encoder, and feedback sensor applications.
Brand: Baumer
Model: ITD21-B14-Y9-600-H-NI-KR6-S-10
Product Category:Rotary Encoders
Main P.Category: Incremental Encoders
Baumer ITD21-B14-Y9-600-H-NI-KR6-S-10 – High-Performance Incremental Rotary Encoder
The Baumer ITD21-B14-Y9-600-H-NI-KR6-S-10 is a high-quality incremental rotary encoder engineered for industrial automation, motor feedback, and precision motion control applications. Designed for long service life and consistent accuracy, this encoder combines robust construction with advanced signal technology to ensure reliability even in harsh environments.
Technical Specifications
-
Brand: Baumer
-
Model: ITD21-B14-Y9-600-H-NI-KR6-S-10
-
Encoder Type: Incremental Rotary Encoder
-
Resolution: 600 pulses per revolution (PPR)
-
Output Signal: HTL level, push-pull (Totem Pole)
-
Voltage Supply: 8–30 V DC
-
Shaft Type: Solid Shaft
-
Shaft Diameter: 10 mm
-
Housing Diameter: 58 mm
-
Connection Type: 1-meter radial output cable
-
Protection Class: IP65 (standard)
-
Operating Temperature: -20°C to +85°C
-
Material: Aluminum body with reinforced shaft bearings
-
Output Channels: A, B, and Z-phase (with complementary signals)
Key Features
-
600 PPR Resolution for precise pulse output and accurate motion feedback.
-
HTL Push-Pull Output compatible with most PLCs and motion controllers, providing excellent noise immunity and stable signals.
-
Wide Voltage Range (8–30VDC) for flexibility in various industrial environments.
-
Solid Shaft Design (10 mm) ensures durability and easy integration into motor or mechanical assemblies.
-
Compact 58 mm Body ideal for applications with limited mounting space.
-
Robust Aluminum Housing offering protection against vibration, dust, and mechanical impact.
-
Baumer Reliability – built with precision German engineering for long-term operation.
Applications
-
Industrial automation and control systems
-
CNC machines and milling equipment
-
Conveyor and material handling systems
-
Robotics and servo motor feedback
-
Textile, printing, and packaging machinery
-
Process control and monitoring systems
Why Choose the Baumer ITD21-B14-Y9-600-H-NI-KR6-S-10 Encoder?
The Baumer ITD21-B14-Y9-600-H-NI-KR6-S-10 combines precision, durability, and flexibility in one compact unit. Its HTL push-pull output and 600PPR resolution ensure accurate signal transmission for reliable speed and position detection. The encoder’s rugged build and IP65 protection rating make it suitable for continuous operation in demanding industrial environments.
At EncoderMarket.com, we supply the Baumer ITD21-B14-Y9-600-H-NI-KR6-S-10 at the best market prices, supported by fast delivery and expert technical assistance.
