E68EC050A01 SME Forklift External Encoder

E68EC050A01 SME Forklift External Encoder – Industrial AC Motor Speed Sensor (Made in Italy)

The E68EC050A01 SME external motor encoder is a high-precision speed sensor designed specifically for forklift AC motors. Manufactured in Italy, this encoder is engineered for durability, reliability, and accurate rotational feedback in demanding industrial environments.

Mounted externally onto the forklift AC motor, the E68EC050A01 detects the rotation of the toothed wheel fixed to the motor shaft and generates two quadrature electrical signals (Channel A and Channel B). These signals are shifted by 90 electrical degrees and provide accurate speed monitoring for motor control systems.

Available through EncoderMarket, this external forklift encoder offers a reliable and cost-effective replacement solution for SME motor systems used worldwide.

Product Overview

The SME motor encoder E68EC050A01 functions as an external motor speed sensor. It reads the rotational movement of a 64-tooth gear mounted on the motor shaft. Each full shaft rotation produces 64 pulses per channel, delivering precise feedback proportional to motor speed.

The encoder outputs two square wave signals in open collector format. Channel A and Channel B are phase-shifted by 90°, enabling direction detection and stable speed measurement in AC motor control systems.

Key Features

• Manufactured in Italy

• Designed for forklift AC motor applications

• 64 pulses per revolution (PPR)

• High immunity to electromagnetic noise

• IP67 protection level

• Wide supply voltage range (5V – 24V DC)

• Low operating temperature design

• Easy substitution and replacement

• External mounting configuration

Technical Specifications

Model: E68EC050A01
Encoder Type: External motor speed sensor
Output Type: Square wave, open collector
Channels: A and B (90° phase shift)
PPR: 64 pulses per revolution
Supply Voltage: 5V – 24V DC
Maximum Speed: 10,000 RPM
Duty Cycle: 50% ± 25%
Rated Phase Shift: 90° ± 45° EL
Operating Temperature: −30°C to +120°C
Protection Class: IP67

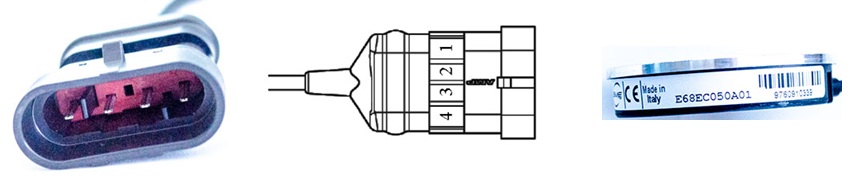

Connector Pin Configuration (4-Pin Connector)

Pin 1: Positive (VCC / B+)
Pin 2: Ground (B−)
Pin 3: Channel A
Pin 4: Channel B

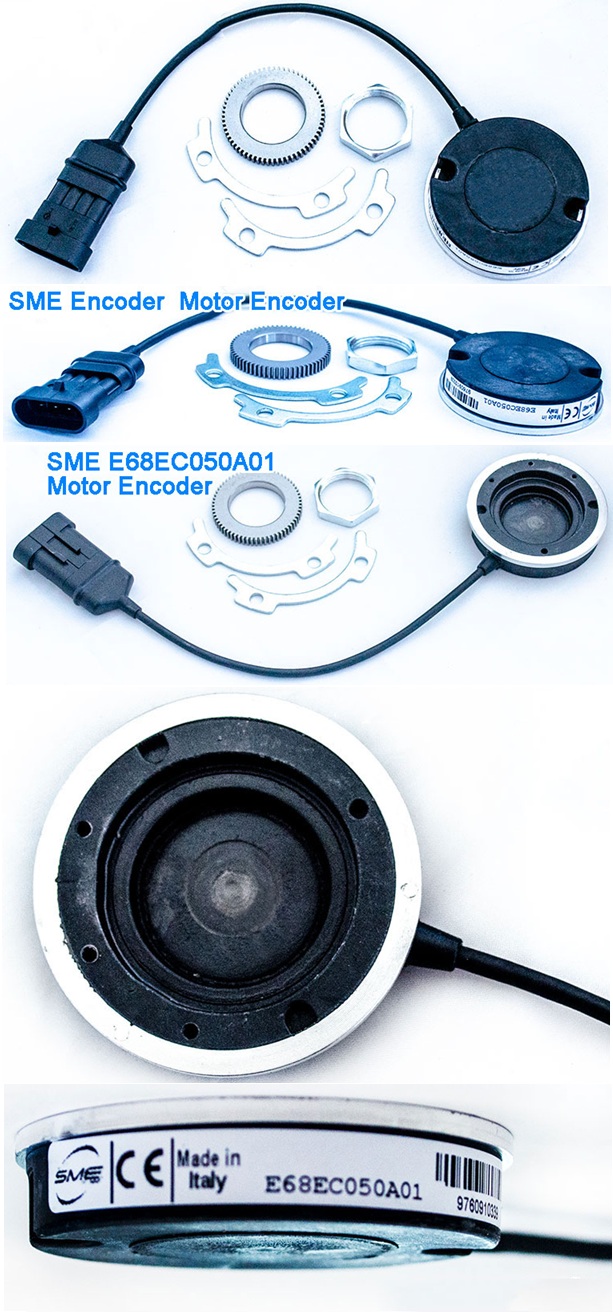

Components Included

• Speed sensor (Part Number: E68EC050A01)

• Locking flange (pair)

• Speed sensor gear

• Ringnut

Compatibility Information

The E68EC050A01 is directly compatible and interchangeable with E68EC080A.

Please note:
The model E68EC051A01 has a different wiring sequence and cannot be directly replaced by E68EC050A01.

Typical Applications

This encoder is commonly used in SME motors, widely installed in forklift brands such as:

• HELI

• TCM

• TAILIFT

• HANGCHA

• LONKING

It is specifically designed for forklift AC motor speed monitoring and control feedback systems.

Industrial Performance and Reliability

With an operating temperature range from −30°C to +120°C and IP67 protection level, the E68EC050A01 performs reliably in harsh warehouse and industrial environments. Its strong electromagnetic noise immunity ensures stable signal output even in electrically noisy forklift motor systems.

The external mounting structure allows quick replacement in case of damage, reducing downtime and maintenance costs.
