802S-20-S-1024-Q-H5-1-F-1-SG-N Rotary Encoder – Accu Coder

Accu-Coder
SKU: 802S-20-S-1024-Q-H5-1-F-1-SG-N

802S-20-S-1024-Q-H5-1-F-1-SG-N  Accu Coder Rotary Encoder by Encoder Products Company

The product is an Accu Coder 802S-20-S-1024 stainless steel encoder. This rotary encoder operates within a voltage range of 8-28VDC and delivers 1024 cycles per revolution. It is designed to be robust and durable, suitable for industrial applications where precise rotational feedback is required. The encoder’s stainless steel construction ensures resistance against environmental factors such as moisture and dust, making it an ideal choice for harsh operating conditions. The encoder has been previously used but remains fully operational and functional as intended.

Accu Coder 802S-20-S-1024 Stainless Steel Encoder 8-28VDC 1024 Cycles / Rev.

Specifications:

  • Model #: 802S-20-S-1024-Q-H5-1-F-1-SG-N
  • More Information:
    • Voltage: 8 to 28 VDC
    • Shaft Diameter: 3/8″
    • Operating Tempreature: 0° to 70° C
    • Cycles per Revolution: 1024
    • Number of Channels: Quadrature A & B
    • Output Type: Line Driver
    • Maximum Frequency: 100 kHz
    • Flange Mount: Female Pilot 1.181″
    • Protection Class: IP66
    • Connector Location: Side
    • Connector Type: Gland
Get a Quote
Get a Quote

Fast Delivery

Fair Price

24/7 Support

Certified Production

Model 802S Description

The Model 802S Accu-Coder® is a heavy duty, industry standard Size 20 (2.0″ diameter) incremental shaft encoder specifically designed for harsh factory and plant floor environments. The Model 802S is available with a variety of flange and servo mounting styles, making it easy to use in a broad range of applications. Its heavy duty, double-shielded ball bearings are rated at 80 pounds maximum axial and radial shaft load, ensuring long operating life. This ultra-rugged, yet compact encoder is housed in a type 316 stainless steel enclosure, making it ideal for applications where contamination or exposure to caustic chemicals is a concern. The Model 802S provides the precise, reliable output you’ve come to expect from Accu-Coder®.

Model 802S Features

  • Industry standard Size 20 (2″ diameter) stainless steel package
  • Flange and servo mounting
  • Resolutions up to 30,000 CPR
  • 80 lb maximum axial and radial shaft loading
  • IP67 sealing available

Model 802S Flange Mount (F, L, G)
2.060″ square flange
1.181″ female pilot (F) shown above
0.687″ male pilot (L)
1.250″ male pilot (G)
Outer holes: 4 x 90° 2.475″ bolt circle
Inner holes: 4 x 90° 2.000″ bolt circle

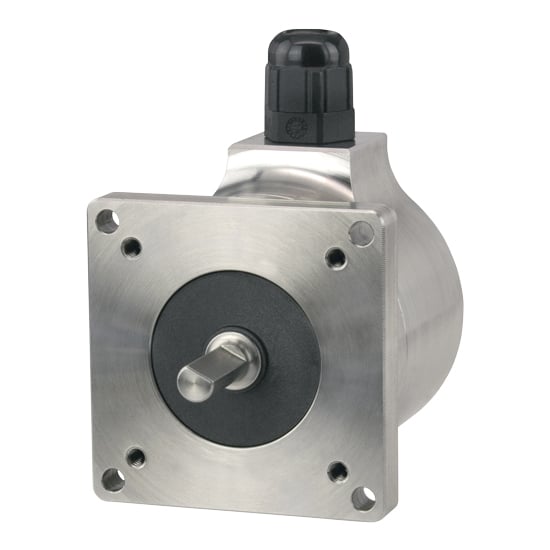

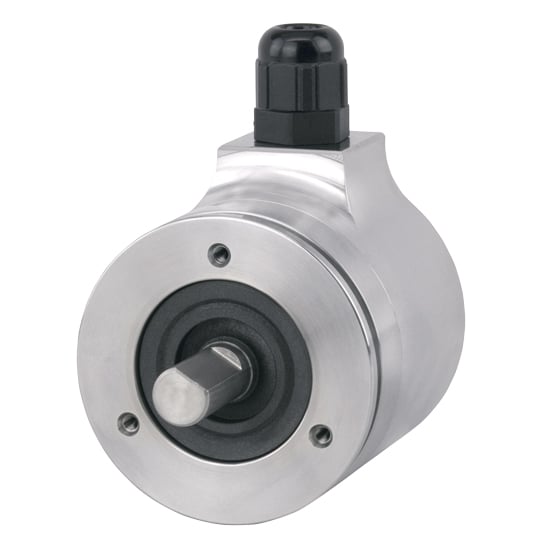

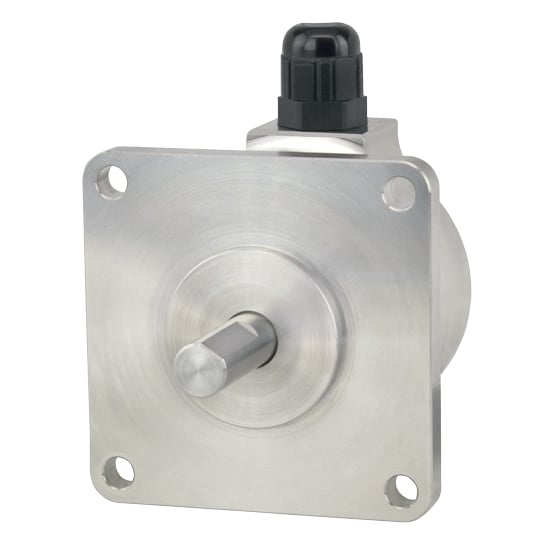

802s-flange-fModel 802S Accu-Coder servo mount (S, U, T)Model 802S Accu-Coder flange mount (K)

Download Model 802S datasheet
