60-242-12P-12V Thermo Ramsey 12 PPR Speed Sensor
| Resolution |
12 PPR |
|---|---|
| Output Circuit |
Open Collector |
| Technology |
Incremental Encoder |

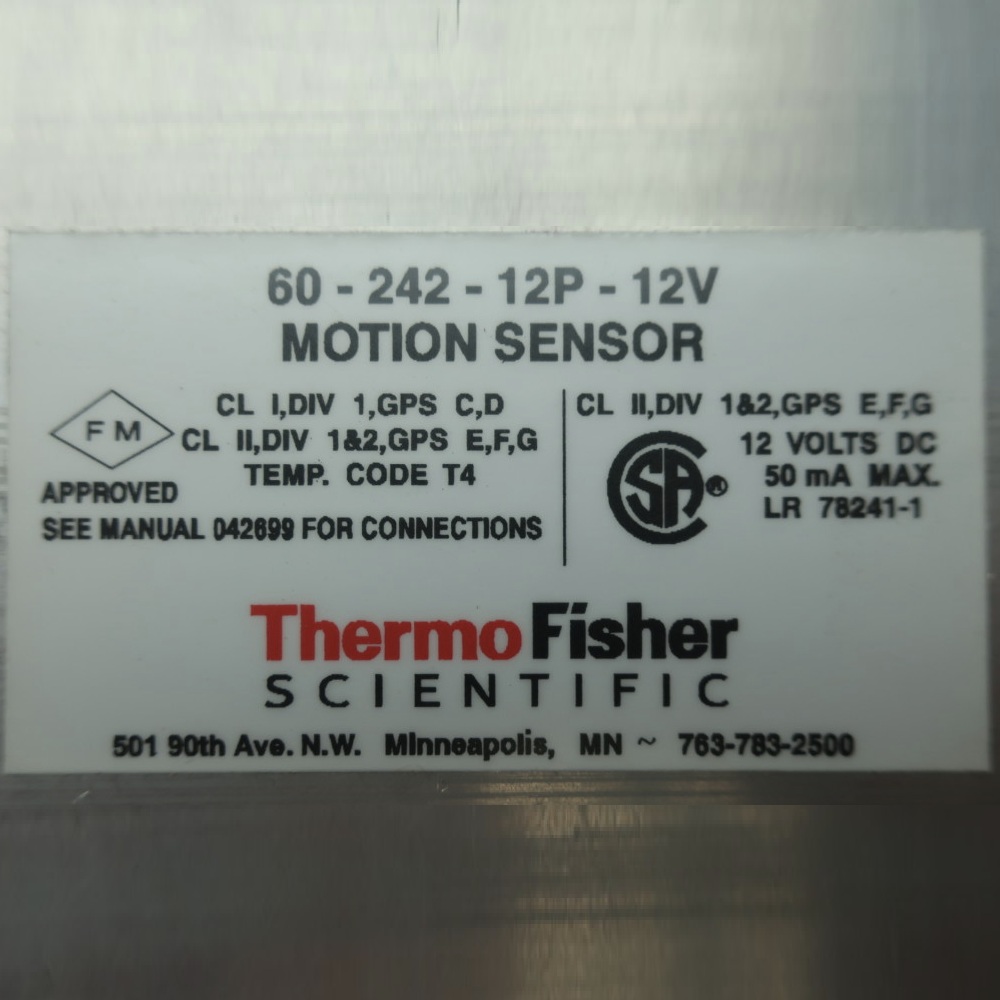

Thermo Ramsey 60-242-12P-12V Motion Sensor – 12 PPR Speed Sensor
Discover the Thermo Ramsey 60-242-12P-12V Motion Sensor – a 12 PPR industrial speed sensor designed for precise motion detection in conveyors and material handling systems.
Contact info@encodermarket.com for pricing.
Model: 60-242-12P-12V
Product: Motion Sensor
Category: Speed Sensor & Switch
Resolution: 12 PPR
Output Circuit: NPN Open Collector
Datasheet (Download Thermo Ramsey 60-242-12P-12V Motion Sensor.pdf)
Product Overview: Thermo Ramsey 60-242-12P-12V Motion Sensor – 12 PPR Speed Sensor
The 60-242-12P-12V from Thermo Ramsey is a high-performance motion sensor specifically designed for monitoring rotary motion in industrial environments. As a 12 Pulses Per Revolution (PPR) speed sensor, this model ensures accurate detection of shaft rotation, delivering critical feedback for conveyor systems, belt scales, feeders, and other motion-sensitive applications.
🔧 Key Technical Specifications:
| Parameter | Details |
|---|---|
| Model | 60-242-12P-12V |
| Manufacturer | Thermo Ramsey (a Thermo Fisher Scientific brand) |
| Sensor Type | Motion / Speed Sensor |
| Pulses Per Revolution | 12 PPR |
| Output Signal | NPN Open Collector (2-channel quadrature output) |
| Supply Voltage | 12 VDC nominal (typically 10–15 VDC range) |
| Output Type | Digital, Square Wave |
| Connector | MIL-style circular connector (typically 6-pin) |
| Housing | Industrial-grade aluminum or stainless steel |
| Mounting | Flange-mounted with adjustable slots |
| Operating Temperature | -40°C to +85°C |
| Ingress Protection | IP65 or higher (depending on configuration) |
| Applications | Conveyor speed monitoring, zero-speed detection, material flow control |
📌 Main Features & Benefits:
-
Precision Sensing: With 12 PPR output, the sensor provides high-resolution feedback suitable for medium-speed applications.
-
Rugged Construction: Built for industrial settings, the 60-242-12P-12V withstands shock, vibration, and harsh environmental conditions.
-
Versatile Mounting Options: Easily integrated into new or existing systems with standard flange mounting.
-
Compact Design: Space-saving design makes it suitable for tight equipment layouts.
-
Reliable Output: Dual-channel quadrature output ensures direction detection and enhanced signal stability.
-
Zero-Speed Detection Compatibility: Ideal for systems that require immediate feedback when motion stops.
🏭 Typical Applications:
-
Belt conveyor monitoring in mining and aggregate industries
-
Speed regulation in feed systems
-
Motion confirmation in material handling lines
-
Integration into Thermo Ramsey belt scale systems
-
Over-speed and under-speed protection circuits
📞 Get the Best Price
We offer the Thermo Ramsey 60-242-12P-12V Motion Sensor at competitive prices for both OEMs and resellers. For detailed pricing, availability, and technical support, please contact us at:
Our expert team will assist you promptly with quotations, datasheets, and integration advice tailored to your project needs.
