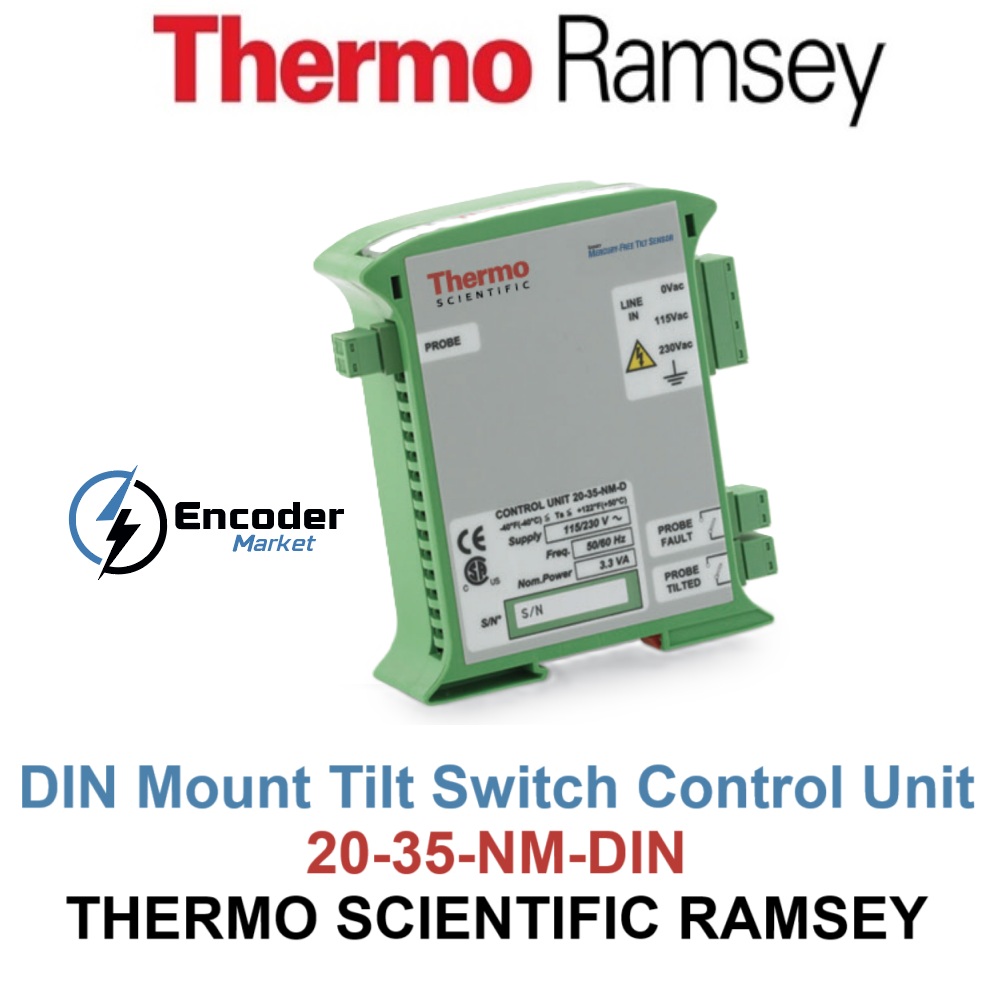

20-35-NM-DIN Tilt Switch Control Unit Thermo Ramsey
20-35-NM-DIN Tilt Switch Control Unit – Thermo Scientific Ramsey
Discover the 20-35-NM-DIN Thermo Ramsey DIN Mount Tilt Switch Control Unit – a robust, industrial-grade control module for tilt switches used in bulk material handling. Featuring NEMA 4/IP65 enclosure, wide voltage compatibility, and reliable SPDT relay output. Ideal for blocked chute detection and material flow monitoring.
Available now at the best price – contact info@encodermarket.com for details.
Brand: Thermo Ramsey
Model: 20-35-NM-DIN
Product Category: Tilt Switch
Product Name: Tilt Switch Control Unit
20-35-NM-DIN Tilt Switch Control Unit – Thermo Ramsey
DIN Rail-Mounted Control Module for Reliable Tilt Switch Integration
Product Overview
The 20-35-NM-DIN Tilt Switch Control Unit by Thermo Ramsey is a DIN rail-mounted electronic controller designed for use with tilt switch probes such as the 20-30NM, 20-30SS, and other compatible models. It provides a compact and reliable interface for monitoring tilt events and controlling alarms or shutdowns in bulk material handling systems.
Engineered for control panels and automation enclosures, the 20-35-NM-DIN is ideal for industrial applications that demand precise, space-saving, and fail-safe tilt switch integration.
Key Features
-
Compact DIN Rail Design
Optimized for installation inside control panels. Saves space and simplifies wiring in electrical cabinets. -
Universal Compatibility
Works with a range of mercury and mercury-free tilt probes, including Thermo Ramsey models like 20-30NM and 20-30SS. -
Fail-Safe Operation
Ensures system protection by triggering a safe state in the event of power loss, system error, or cable fault. -
Relay Output
SPDT relay output for activating alarms, conveyors, shutdown systems, or other automated responses. -
LED Status Indicators
Front-panel LEDs indicate power, sensor status, and alarm conditions for quick troubleshooting and maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 20-35-NM-DIN |
| Mounting Type | DIN Rail Mount (35 mm) |
| Power Supply | 120/240 VAC, 50/60 Hz |
| Compatible Probes | 20-30NM, 20-30SS, and other Thermo Ramsey types |
| Relay Output | SPDT (Single Pole Double Throw) |
| Relay Rating | 5A @ 250 VAC / 30 VDC |
| Indicators | LED for Power, Probe Activated, Alarm |
| Operating Temperature | -40°C to +60°C |
| Enclosure Type | Panel mount module, typically IP20 |
| Dimensions | Approx. 100 mm x 75 mm x 45 mm (DIN form) |
Applications
-
Blocked chute detection
-
Conveyor safety interlocks
-
High-level bin and hopper monitoring
-
Material flow detection
-
Use in grain handling, cement production, mining, and bulk solids automation systems
